Automatic Twin Flat Electric Cable Cutting Stripping Twisting Machine

Name: Automatic Twin Flat Electric Cable Cutting Stripping Twisting Machine
Brand: Fortune Sky
Price: 1 USD

Brand Name : Fortune Sky

Model Number : FY-815

Certification : CE

Place of Origin : China

MOQ : 1 Piece

Price : USD1-USD1999

Payment Terms : T/T, Paypal

Supply Ability : 50 pcs per month

Delivery Time : 2-3 working days after payment received regularly

Packaging Details : Plywood Case

Cutting Length : 0.1mm-99999.9mm

Stripping Length : Stripping Head 0.1mm-100mm, Stripping Tail 0.1mm-80mm

Wire Core Cutting : Up to 6 sqmm, flat wire stripping

Cutting Tolerance : Within 0.002×L(mm)xL

Contact Now

Feature:

This automatic twin flat electric cable cutting stripping twisting machine is equipped with the latest 32-bit intelligent control system, featuring a bilingual (Chinese and English) switchable LCD display, touchscreen operation, and the capability to store up to a hundred pieces of information for quick and convenient access. It is highly efficient and suitable for processing, cutting, and stripping various types of wires such as electronic wires, PVC wires, braided wires, silicone wires, high-temperature wires, Teflon wires, and insulated wires, with adjustable settings to meet your specific needs.

Technical Parameters:

Wire Feeding and Retrieval Motor Precision	Silent hybrid stepping motor, 0.1mm per step
Blade Material	Tungsten Steel/Imported High-Speed Steel
Twisting Method	Motorized twisting
Display	4.3-inch Touchscreen
Power Supply (Switching Power Supply)	AC 175V-250V,50/60Hz
Drive Mode	Four wheels
Power	120W-220W
Cutting Length	0.1mm-99999.9mm
Stripping Length	Stripping Head 0.1mm-100mm, Stripping Tail 0.1mm-80mm
Wire Core Cutting	Up to 6 sqmm, flat wire stripping
Cutting Tolerance	Within 0.002×L(mm)xL
Intermediate Stripping	13 points
Conduit Diameter	1.5mm-9mm
Stripping Rate per Hour	1000-3000 pieces
Wire Pressure Adjustment	Available
Pulse Equivalent	0.05mm error within 1 meter of wire
Blade Motor Precision per Step	0.03mm
Net Weight	48 kg
Additional Features	Automatic wire break detection and stop, automatic wire feeding and retrieval, timed startup.

Quality Automatic Twin Flat Electric Cable Cutting Stripping Twisting Machine for sale

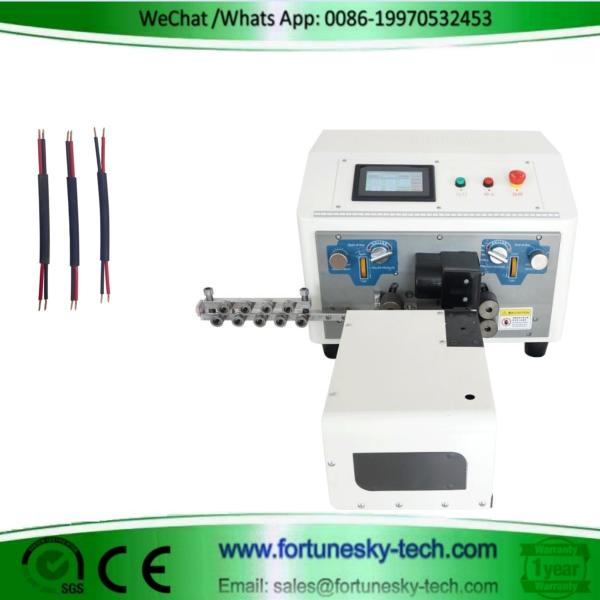

Automatic Twin Flat Electric Cable Cutting Stripping Twisting Machine Images
